- 7''tft screen rear view camera kit for trailer

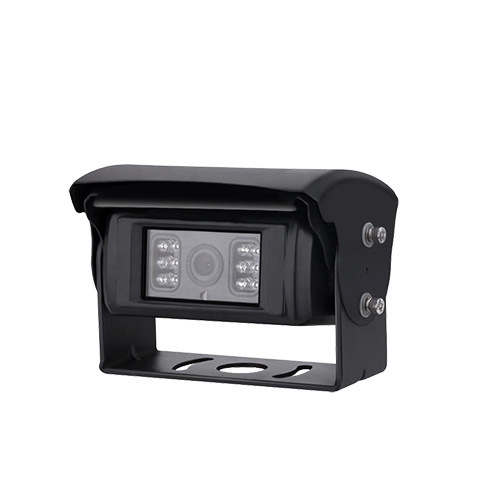

- The Auto shutter backup camera is an extremely well made, heavy-duty, full-color Auto shutter backup Camera suited for large commercial transport vehicles, trucks and large plant vehicles.
This clever system automatically switches on, and the shutter opens when reverse gear is selected or by direction lights.
- Inquiry

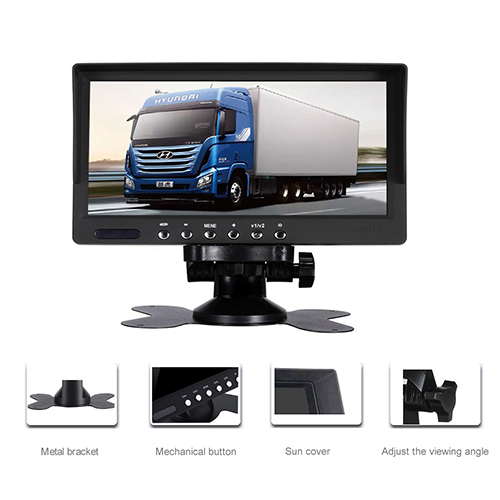

7 inch lcd rear view monitor for bus
Display Component: Color TFT-LCD
Number of Dots: 800(W) x RGB x 480(H)
Aspect Ratio: 16:9
Contrast Ratio:350:1
Video Frequency: PAL/NTSC
Video: Two way video input
Blue background display
All-function remote controller
Automatically turning system
Available for VCD/DVD/GPS/CAMERA
High-resolution picture
Display Component: Color TFT-LCD
Number of Dots: 800(W) x RGB x 480(H)
Aspect Ratio: 16:9
Contrast Ratio:350:1
Video Frequency: PAL/NTSC
Video: Two way video input
Blue background display
All-function remote controller
Automatically turning system
Available for VCD/DVD/GPS/CAMERA
High-resolution picture
Full color display
Image sensor： 1/4" SHARP CCD
Resolution N:510×492 pixels P: 500×582 pixels
Horizontal Resolution: 420TVL
TV System:NTSC/PAL
Lens：2.5mm
View angle：120 degree (90 Horizotal,64 Vertical)
Power supplier:12VDC
Current consumption：200mA
Power consumption: 2.4W @ 12VDC
Min illumination： 0 Lux (LED ON)
Night Vision: IR LED : 12 pcs (Night vision distance 5m)
Waterproof rating: IP68

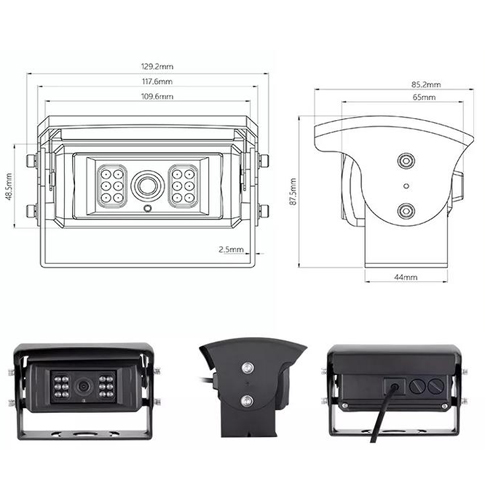

Dimension(WxHxD)：88mm x 130mm x 86mm (MAX)
Operation temperature: -20 ~ +70 C-degress
