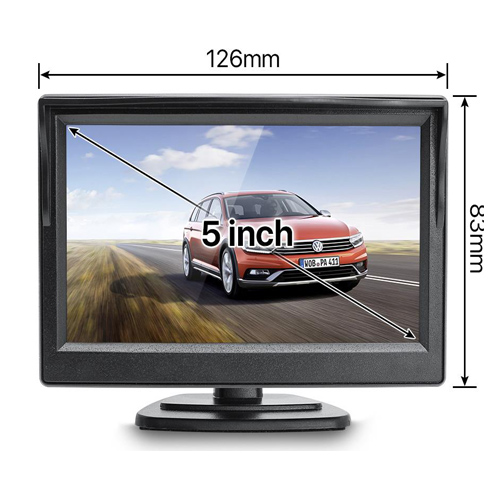

AHD 5 inch Monitor:
 Video signal: Supports AHD and CVBS signals.
Screen size: 5-inch screen
Format: 16:9

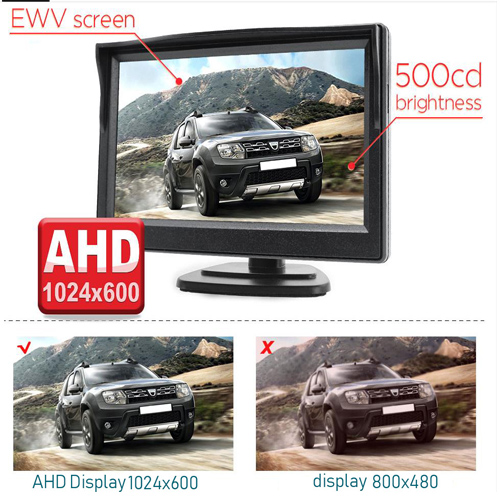

Screen brightness: 500CD / M2
Screen contrast: 300:1
EWV screen: Support
Effective pixels of the screen: 1024*600
Signal format: PAL / NTSC
Night vision image: automatic gain control, automatic white balance, automatic

backlight compensation.
Power supply voltage: 12V-30V (Not recommended for trucks)
Power consumption: <= 6W
Screen saver time setting: Off / 1 minute / 3 minutes / 5 minutes
Support screen flip and mirror function
Support adjustment of brightness, contrast and saturation
Support English, Russian, Korean, Chinese, Japanese
Recommend using our AHD camera, the display effect is very good, just like the

effect of video demonstration.

Key Description

Long press +: Turn screen off or on
Long press-: Switch video signal (AHD1 / AHD2)
Click MENU: Open menu / back key
Long press MENU: OK / Next option


AHD Car Camera:

AHD 2053 imaging sensor.
Video output: AHD Video Signal (1920*1080P )
High-definition and 170 degree wide viewing angle. Fisheye lens
Support parking reference line switch on/off
Support NTSC/PAL Video system.
High grade of waterproofing: IP68.
Low-light Level Night Vision, 15m visible distance for night. 6M RCA Video

connector.
New body material:
High quality stainless steel, aluminium alloy.
Anti Scratch.
Waterproof.
