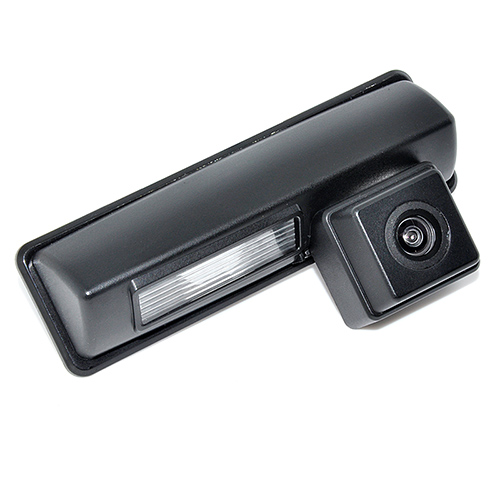

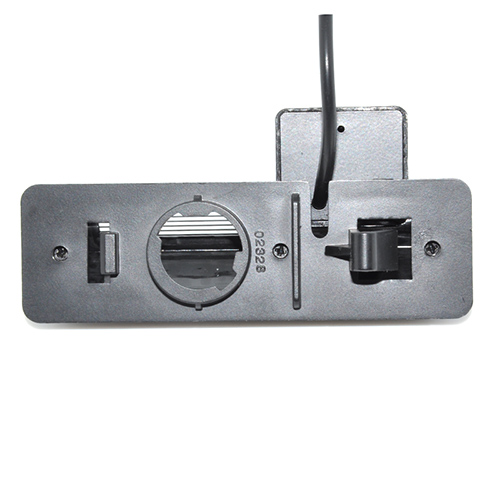

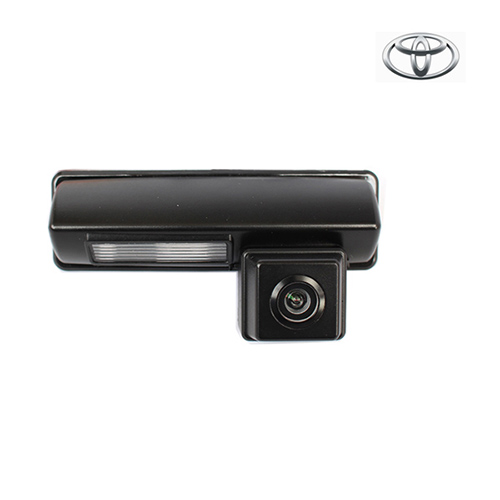

Original Car Reverse Camera for Toyota Camry
Model NO.: 02328
Inquiry

Reverse Camera Specifications:


Chipset Type:1/4''color CMOS
Operating Voltage:9V~16V DC
Supply Current:Max. 100mA'
Operating Temperature:'-20°C~70°C , RH95% MAXTV System
TV System:PAL / NTSC
Housing:Waterproof & Weather Resistant for outdoor use
Effective Pixels:648*488 pixels
Sensing Area:3.63mm x 2.73mm
Scanning System:2:1 Interlace
Minimum Illumination:0.2 Lux/F1.2
Horizontal Sync. Frequency:15.625KHz / 15.734KHz
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Gamma Consumption:0.45
AGC:Auto
Signal/Noise Ratio:Better than 48dB
White Balance:Auto
Electronic Shutter :1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC:Auto
Storage Temperature:-40°C~85°C,RH95% MAX
Lens:f=3.6mm / F = 2.5
Lens Angle:130°
Audio & IR:Not available

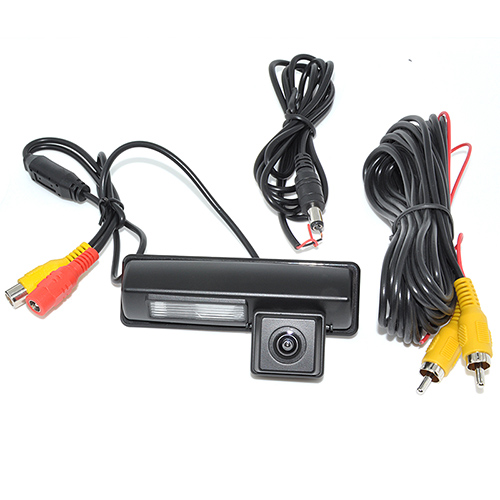

Package included:

1 x Cars Reverse Camera
1 x Video Cable(6m)
1 x Power Supply Cable
