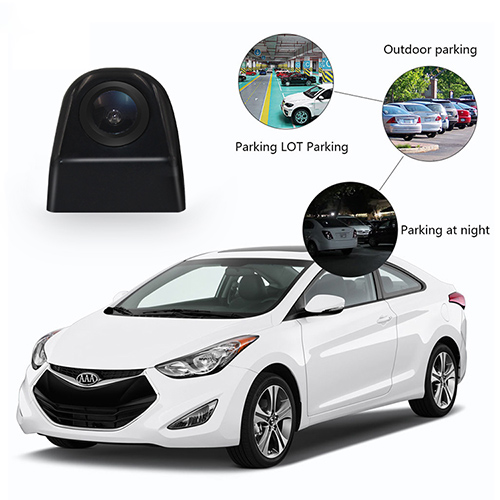

Reverse Camera Specifications

Chipset Type:1/4''color CMOS
Operating Voltage:9V~16V DC
Supply Current:Max. 100mA'
Operating Temperature:'-20°C~70°C , RH95％ MAXTV System
TV System:PAL / NTSC

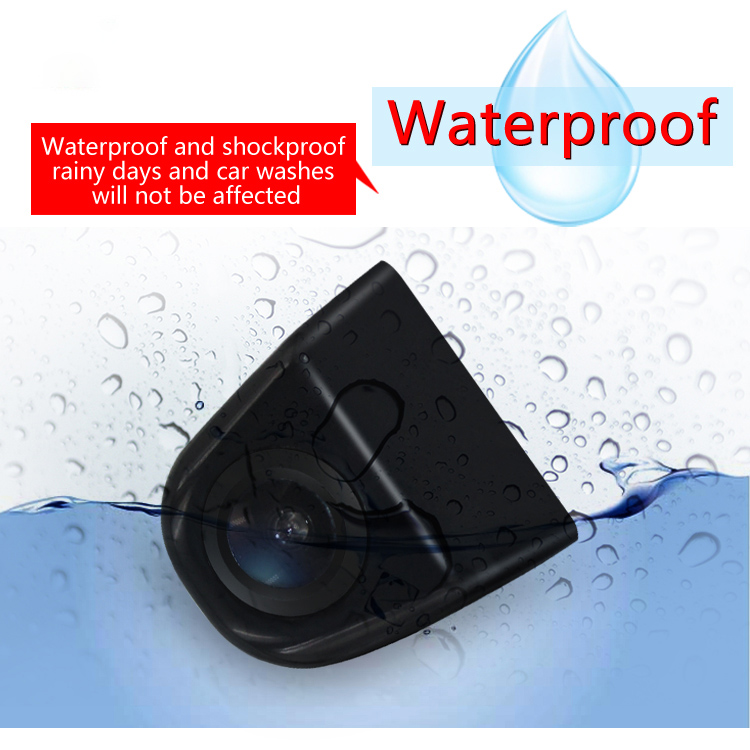

Housing:Waterproof & Weather Resistant for outdoor use
Effective Pixels:648*488 pixels
Sensing Area:3.63mm x 2.73mm
Scanning System:2:1 Interlace
Minimum Illumination:0.2 Lux/F1.2
Horizontal Sync. Frequency:15.625KHz / 15.734KHz
Vertical Sync. Frequency:50Hz / 60Hz
Video Output:1.0vp-p, 75Ohm
Gamma Consumption:0.45
AGC:Auto
Signal/Noise Ratio:Better than 48dB
White Balance:Auto
Electronic Shutter :1/60(NTSC) / 1/50(PAL) ~ 1/10,000 Seconds
BLC:Auto
Storage Temperature:－40°C~85°C，RH95％ MAX
Lens:f=3.6mm / F = 2.5
Lens Angle:130°
Audio & IR:Not available

Package included:
1 x Cars Reverse Camera
1 x Video Cable(5.5 meters)
1 x Power Supply Cable
