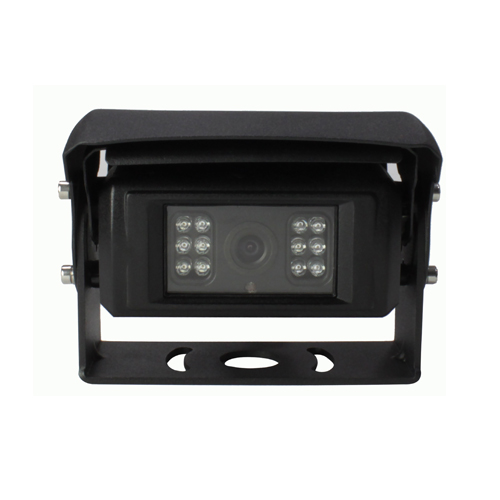

- Waterproof Auto Shutter Rear View Backup Camera
- FEATURES:
The Auto shutter backup camera is an extremely well made, heavy-duty, full-color Auto shutter backup Camera suited for large commercial transport vehicles, trucks and large plant vehicles. This clever system automatically switches on, and the shutter opens when reverse gear is selected or by direction lights.
The wide camera lens has been designed specifically for the purpose of vehicle reversing, giving a good field of view to make reversing very easy and safe. This extra heavy-duty camera also has built-in Infrared LED’s for picture support in the dark AND automatic heating when below -5°C.
Image sensor： 1/4" SHARP CCD
Resolution： N:510×492 pixels
P: 500×582 pixels
Horizontal Resolution 420TVL
TV System： NTSC/PAL
Lens： 2.5mm
View angle： 120 degree (90 Horizotal,64 Vertical)
Power supplier 12VDC
Current consumption： 200mA
Power consumption： 2.4W @ 12VDC
Min illumination： 0 Lux (LED ON) Night Vision
IR LED 12 pcs (Night vision distance 5m)
Waterproof rating IP68
Packing weight 0.6KG
Dimension(WxHxD)： 88mm x 130mm x 86mm (MAX)
Operation temperature： -20 ~ +70 C-degress
- Inquiry
Model: CT011
Heavy-duty Color Auto shutter backup camera with Infrared LED.
Automatic protective shutter closes when not in useWide field of view 120° lens
Waterproof rating IP68
Produced specifically to withstand the rigors of use in the transport industry
