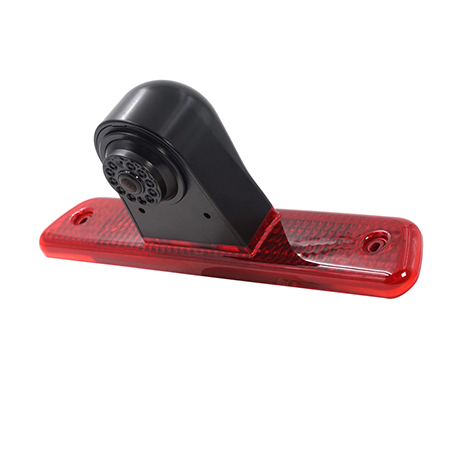

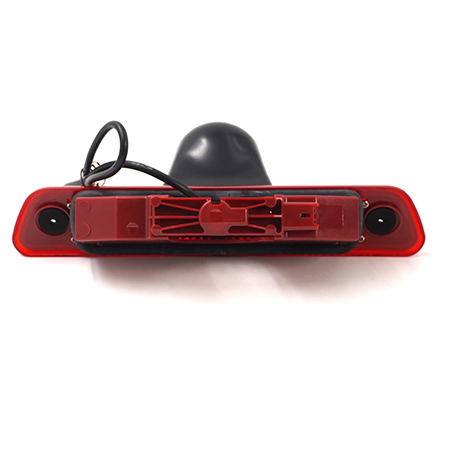

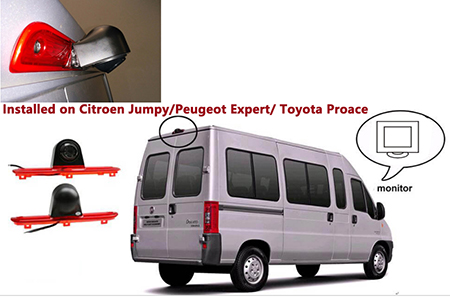

- Brake Light Camera For Citroen Jumpy/Peugeot Expert/ Toyota Proace 2007 - 2016
- The Package Included :
1 x Car Rear View Camera
1 x 10M video cable
1 x 1.5M power supply cable
1 x user manual
1 x RCA Cable adapter
4 x Screw - Inquiry
Image sensor: 1/3 PC4089 CMOS
Reference line switch on/off function
TV system: PAL/NTSC switchable function
Effective pixels:762（H）×504（V）
Horizontal resolutions: 800 TV lines
Wide-angle: 170 Degree ,horizontal angle:130 Degree
Sensing area: 3.8 mm *2.9 mm
Shutter speed: 1-1/12000
Gamma no.:0.45
Minimum illumination:0.01 Lux/F=1.2(0 Lux with IR on)
Power consumption: 130mA
Power supply: DC12V
Operating temperature: -20℃ - 75℃，RH 95% MAX
Waterproof rate:IP68
Night vision Color camera
10M 4PIN video cable including
4PIN to RCA switch cable including
Reference line switch on/off function
TV system: PAL/NTSC switchable function
Effective pixels:762（H）×504（V）
Horizontal resolutions: 800 TV lines
Wide-angle: 170 Degree ,horizontal angle:130 Degree
Sensing area: 3.8 mm *2.9 mm
Shutter speed: 1-1/12000
Gamma no.:0.45
Minimum illumination:0.01 Lux/F=1.2(0 Lux with IR on)
Power consumption: 130mA
Power supply: DC12V
Operating temperature: -20℃ - 75℃，RH 95% MAX
Waterproof rate:IP68
Night vision Color camera
10M 4PIN video cable including
4PIN to RCA switch cable including
